TP5KP11CA | Littelfuse
TVS diode, Bidirectional, 5 kW, 11 V, P600, TP5KP11CA
Unit Price (€ / pc.)
2.1658 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

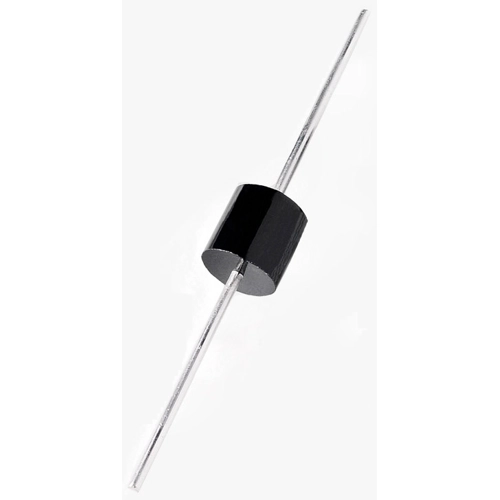

TVS Diode, TP5KP11CA, Littelfuse
TP5KP11CA is a Bi-directional axial leaded TVS Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Features
- Fast response time
- Excellent clamping capability
- Low incremental surge resistance
- Matte tin lead–free plated
- Halogen free and RoHS compliant
Applications
- Protection of I/O interfaces
- VCC bus
- Telecom
- Computer
- Industrial and consumer electronic applications
Technical specifications
| Version | Bidirectional | |
| Continuous power loss | 8 W | |
| Breakdown voltage | 12.2 V | |
| Enclosure | P600 | |
| Pulse power loss | 5 kW | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Rated blocking voltage | 11 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
