SZP6SMB13AT3G | Littelfuse

Name: SMD TVS diode, Unidirectional, 600 W, 11.1 V, DO-214AA, SZP6SMB13AT3G
Brand: Littelfuse
SKU: 74P4988
Price: 0.20 EUR
Availability: OutOfStock

SMD TVS diode, Unidirectional, 600 W, 11.1 V, DO-214AA, SZP6SMB13AT3G

Order No.: 74P4988

EAN: 4099891818531

MPN:

SZP6SMB13AT3G

Series: SZP6SMB

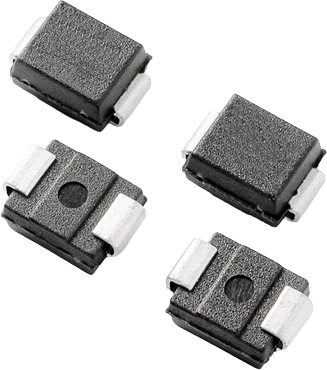

Image may differ

Key Specification:

Pulse power loss 600 W

Rated blocking voltage 11.1 V

Breakdown voltage 12.4 V

Continuous power loss 1.5 W

Show 53 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.2023 € *

Available: 0 pcs.

Leadtime: 14 Weeks **

Add to Cart

Total Price:

0.20 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

TVS Diode, SZP6SMB13AT3G, Littelfuse

The SZP6SMB13AT3G TVS Diode is designed to protect voltage sensitive components from high voltage, high energy transients. It has excellent clamping capability, high surge capability, low breakdown impedance and fast response time.

Technical specifications

	Version	Unidirectional
	Continuous power loss	1.5 W
	Breakdown voltage	12.4 V
	Enclosure	DO-214AA
	Pulse power loss	600 W
	max. operating temperature	175 °C
	min. operating temperature	-65 °C
	Assembly	SMD
	Rated blocking voltage	11.1 V

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85411000

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
