SZ1SMB13CAT3G | Littelfuse

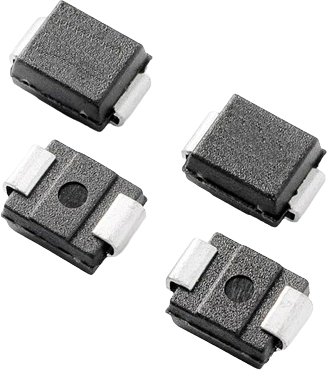

SMD TVS diode, bidirectional, 600 W, 13 V, DO-214AA, Littelfuse SZ1SMB13CAT3G
Unit Price (€ / pc.)
0.2463 € *
Standard delivery time from the manufacturer is: 14 Weeks
TVS Diode, SZ1SMB13CAT3G, Littelfuse
The SZ1SMB13CAT3G TVS Diode is designed to protect voltage sensitive components from high voltage, high energy transients. It has excellent clamping and high surge capability, as well as fast response time.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Continuous power loss | 4 W | |
| Enclosure | DO-214AA | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| min. operating temperature | -65 °C | |
| Version | bidirectional | |
| Rated blocking voltage | 13 V | |
| Breakdown voltage | 14.4 V | |
| Pulse power loss | 600 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
