SZ1SMA20CAT3G | Littelfuse
TVS Diode, SZ1SMA20CAT3GAH
Unit Price (€ / pc.)
0.33 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

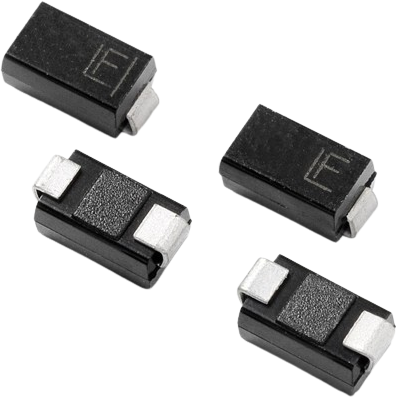

TVS Diode, SZ1SMA20CAT3G, Littelfuse
The SZ1SMA20CAT3G TVS Diode is designed to protect voltage sensitive components from high voltage, high energy transients. It has excellent clamping capability, high surge capability, low zener impedance and fast response time.
Features
- Board mounting
- Low Profile Package
- RoHS-compliant and halogen free
Technical specifications
| Version | Bidirectional | |
| Continuous power loss | 2 W | |
| Breakdown voltage | 22.2 V | |
| Enclosure | DO-214AC | |
| Pulse power loss | 400 W | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 20 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
