SP3118-01WTG | Littelfuse

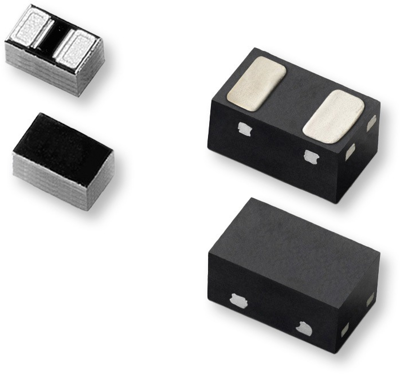

SMD TVS diode, bidirectional, 18 V, 0603 WLCSP, Littelfuse SP3118-01WTG
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1547 € *
Standard delivery time from the manufacturer is: 11 Weeks
Bidirectional discrete TVS, SP3118-01WTG, Littelfuse
The SP3118-01ETG includes back-to-back TVS diodes fabricated in a proprietary silicon avalanche technology to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). The back-to-back configuration provides symmetrical ESD protection.
Features
- Halogen free, lead free and RoHS compliant
- AEC-Q101 qualified (SOD882)
Applications
- Tablets
- Ultrabook
- Smart Phones
- Digital Cameras
- MP3/ PMP
- Portable Medica
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bidirectional | |
| Rated blocking voltage | 18 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Assembly | SMD | |
| Enclosure | 0603 WLCSP | |
| Capacity | 0.3 pF |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
