SP0504SHTG | Littelfuse

SMD TVS diode, bidirectional, 6 V, SOT23-6L, Littelfuse SP0504SHTG

Order No.: 74P4773
EAN: 4099891816384
MPN:
SP0504SHTG
SP0504SHTG Littelfuse TVS Diodes

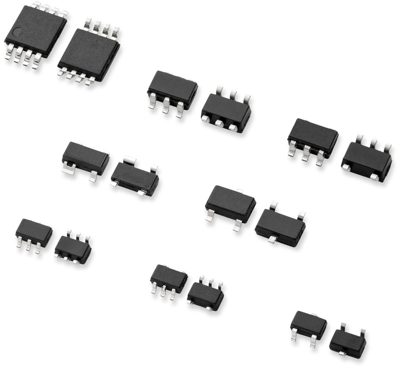

Image may differ
Unit Price (€ / pc.)
0.3689 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1,106.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.3689 €

Unidirectional TVS Array, SP0504SHTG, Littelfuse

This product can help protect sensitive digital or analog input circuits on data, signal, or control lines with voltage levels up to 5 VDC.

Features

  • Fast response time <1ns
  • Low input capacitance 30pF Typical
  • Moisture sensitivity level (MSL-1)

Applications

  • Mobile phone handsets
  • Personal Digital Assistants (PDA)
  • Portable handheld equipment (Laptop, Palmtop computers)
  • Digital still cameras
  • Digital video cameras
  • MP3 players
Technical specifications
Breakdown voltage 6.3 V
Assembly SMD
max. operating temperature 125 °C
Capacity 0.85 pF
Rated blocking voltage 6 V
min. operating temperature -40 °C
Enclosure SOT23-6L
Version bidirectional
Logistics
Customs tariff number 85411000
Country of origin TH
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
