SMAJ5.0A | Littelfuse

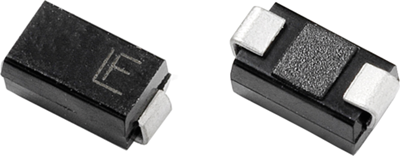

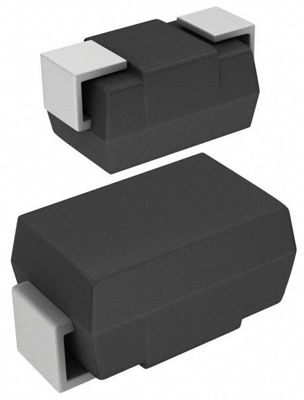

SMD TVS diode, unidirectional, 400 W, 5 V, DO-214AC, Littelfuse SMAJ5.0A
Unit Price (€ / pc.)
0.3213 € *
Available: 3,320 pcs.
Total Price:
0.32 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3213 €
10 pcs.
0.2332 €
100 pcs.
0.1987 €
500 pcs.
0.1737 €
1000 pcs.
0.1571 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD-TVS-Dioden Typ Littelfuse SMAJ.
Mit geringer Induktivität, UL-gelistet; Impuls-Spitzenverlustleistung: 400 W, Gehäuse: DO214AC, Betriebstemperatur: –55 bis +150 °C. Tabellenangaben: Typ, Nennspannung.
Unidirectionale Ausführung.
Type: SMAJ5.0A, 5,0 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breakdown voltage | 7 V | |
| Rated blocking voltage | 5 V | |
| min. operating temperature | -65 °C | |
| Enclosure | DO-214AC | |
| Pulse power loss | 400 W | |
| Assembly | SMD | |
| Version | unidirectional | |
| Continuous power loss | 3.3 W | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 5,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
