SMAJ36A | Littelfuse

SMD TVS diode, unidirectional, 400 W, 36 V, DO-214AC, Littelfuse SMAJ36A

Order No.: 74P4023
EAN: 4099891808884
MPN:
SMAJ36A
Series: SMAJ
SMAJ36A Littelfuse TVS Diodes

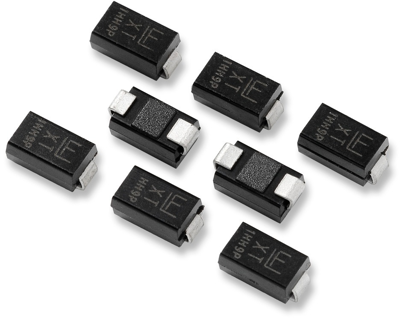

Image may differ
Unit Price (€ / pc.)
0.2035 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1,017.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.2035 €

TVS Diode, SMAJ36A, Littelfuse

The SMAJ36A TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Features

  • Built-in strain relief
  • Glass passivated junction
  • Low inductance
  • Halogen free and RoHS compliant
  • Matte tin lead-free plated
Technical specifications
Continuous power loss 3.3 W
Pulse power loss 400 W
Breakdown voltage 40 V
Assembly SMD
max. operating temperature 150 °C
Rated blocking voltage 36 V
min. operating temperature -65 °C
Enclosure DO-214AC
Version unidirectional
Logistics
Customs tariff number 85411000
Country of origin CN
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
