SMAJ30A | Littelfuse

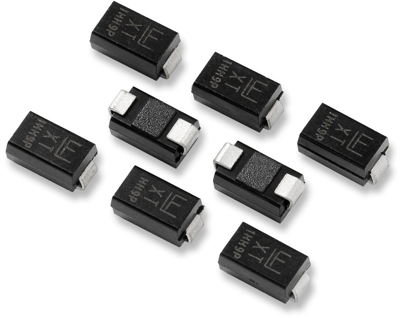

SMD TVS diode, unidirectional, 400 W, 30 V, DO-214AC, Littelfuse SMAJ30A
Unit Price (€ / pc.)
0.2011 € *
Standard delivery time from the manufacturer is: 12 Weeks
TVS Diode, SMAJ30A, Littelfuse
The SMAJ30A TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Features
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Halogen free and RoHS compliant
- Matte tin lead-free plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breakdown voltage | 33.3 V | |
| Pulse power loss | 400 W | |
| Rated blocking voltage | 30 V | |
| Enclosure | DO-214AC | |
| max. operating temperature | 150 °C | |
| Continuous power loss | 3.3 W | |
| Version | unidirectional | |
| min. operating temperature | -65 °C | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
