SMAJ17A | Littelfuse

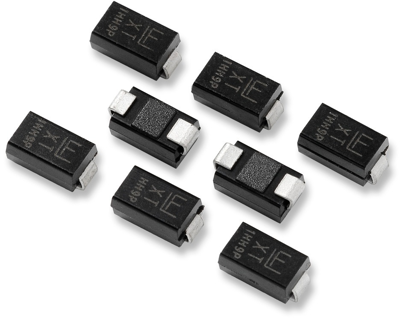

SMD TVS diode, unidirectional, 400 W, 17 V, DO-214AC, Littelfuse SMAJ17A
Unit Price (€ / pc.)
0.2035 € *
Standard delivery time from the manufacturer is: 12 Weeks
TVS Diode, SMAJ17A, Littelfuse
The SMAJ17A TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Features
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Halogen free and RoHS compliant
- Matte tin lead-free plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Continuous power loss | 3.3 W | |
| min. operating temperature | -65 °C | |
| Breakdown voltage | 18.9 V | |
| max. operating temperature | 150 °C | |
| Version | unidirectional | |
| Assembly | SMD | |
| Pulse power loss | 400 W | |
| Rated blocking voltage | 17 V | |
| Enclosure | DO-214AC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
