SMA6L5.0A | Littelfuse

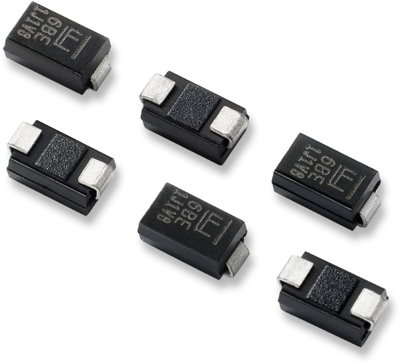

SMD TVS diode, unidirectional, 600 W, 5 V, DO-221AC, Littelfuse SMA6L5.0A
Unit Price (€ / pc.)
0.2166 € *
Standard delivery time from the manufacturer is: 11 Weeks
TVS Diode, SMA6L5.0A, Littelfuse
The SMA6L5.0A TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Features
- Built-in strain relief
- Glass passivated junction
- Low inductance, excellent clamping capability
- Halogen free and RoHS compliant
- Matte tin lead-free plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -65 °C | |
| Version | unidirectional | |
| Rated blocking voltage | 5 V | |
| Pulse power loss | 600 W | |
| Enclosure | DO-221AC | |
| max. operating temperature | 150 °C | |
| Continuous power loss | 3 W | |
| Assembly | SMD | |
| Breakdown voltage | 6.4 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
