P6SMB200A | Littelfuse

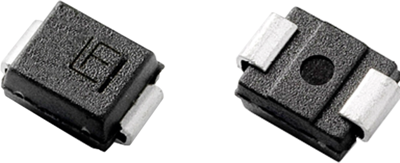

SMD TVS diode, unidirectional, 600 W, 171 V, DO-214AA, Littelfuse P6SMB200A
Unit Price (€ / pc.)
0.1975 € *
Available in 5 Days: 1,900 pcs. - if ordered today
Total Price:
19.75 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1975 €
500 pcs.
0.1714 €
1000 pcs.
0.1559 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD-TVS-Dioden Typ Littelfuse P6SMB.
UL-gelistet; Impuls-Spitzenverlustleistung: 600 W, Gehäuse: DO214AA, Betriebstemperatur: –55 bis +150 °C. Tabellenangaben: Typ, Nennspannung.
Unidirektionale Ausführung.
Type: P6SMB200A, 200 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated blocking voltage | 171 V | |
| Pulse power loss | 600 W | |
| Continuous power loss | 5 W | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| Breakdown voltage | 190 V | |
| min. operating temperature | -65 °C | |
| Enclosure | DO-214AA | |
| Version | unidirectional |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
