S4055NTP | Littelfuse
SCR, S4055NTPAH
Order No.: 74P0577
EAN: 4099891774424
MPN:
S4055NTP
Unit Price (€ / pc.)
3.9032 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

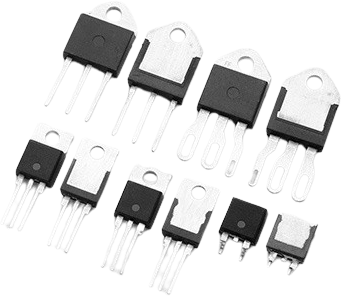

SCR, S4055NTP, Littelfuse
Excellent unidirectional switch for phase control applications such as heating and motor speed controls.
Features
- RoHS compliant
- Glass - passivated junctions
Applications
- Typical applications are AC solid-state switches, industrial power tools, exercise equipment, white goods and commercial appliances
Technical specifications
| Number of pins | 3 | |
| Version | SCR | |
| Gate trigger voltage | 1.5 V | |
| Gate trigger current | 40 mA | |
| Enclosure | TO-263 | |
| max. holding current | 60 mA | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage V RRM (peak reverse voltage) | 400 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85413000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
