P0080SCMCLRP | Littelfuse
Thyristor, P0080SCMCLRPAH
Order No.: 74P0435
EAN: 4099891773007
MPN:
P0080SCMCLRP
Unit Price (€ / pc.)
0.8568 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

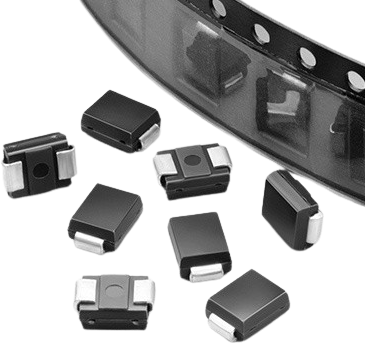

Thyristor, P0080SCMCLRP, Littelfuse
The P0080SCMCLRP is a low capacitance SIDACtor component designed to protect broadband equipment such as VOIP, DSL modems and DSLAMs from damaging overvoltage transients.
Features
- Low voltage overshoot
- Low on-state voltage
- Does not degrade surge capability after multiple surge events within limit
- RoHS compliant and halogen-free
- Fails short circuit when surged in excess of ratings
Applications
- TIA-968-A
- TIA-968-B
- YD/T 1082
- YD/T 993
- YD/T 950
Technical specifications
Number of pins | 2 | |
Enclosure | DO-214AA | |
max. holding current | 50 mA | |
Max. current | 800 mA | |
max. operating temperature | 150 °C | |
min. operating temperature | -40 °C | |
Assembly | SMD |
Download
Logistics
Country of origin | CN |
Customs tariff number | 85413000 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
