CPC1130N | Littelfuse

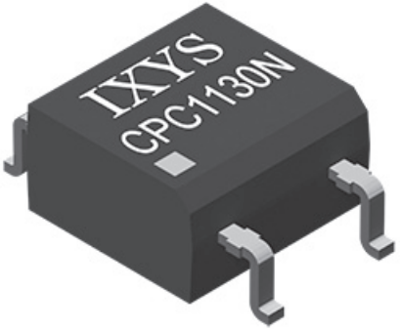

Solid state relay, 350 VDC, 350 mA, PCB mounting, CPC1130N
Order No.: 75P1892
EAN: 4099891887575
MPN:
CPC1130N
Unit Price (€ / pc.)
1.8564 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Relay, CPC1130N, LITTELFUSE
A miniature normally closed, single-pole solid state relay that uses optically coupled MOSFET technology to provide 1500 Vrms of input to output isolation. The efficient MOSFET switches and photovoltaic die use IXYS integrated circuits' patented OptoMOS® architecture, while the optically coupled output is controlled by a highly efficient infrared LED. It offers board space savings of at least 20% when compared to competitive 4-pin SOP solid state relays.
Features
- Low drive power requirements
- High reliability
- No EMI/RFI generation
- Flammability rating UL 94 V-0
Applications
- Telecom switching
- Tip/ring circuits
- Modem switching
- Hook switch
- Dial pulsing
- Ground start
- Ringing injection
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Security
- Industrial controls
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 350 mA | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 350 VDC |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
