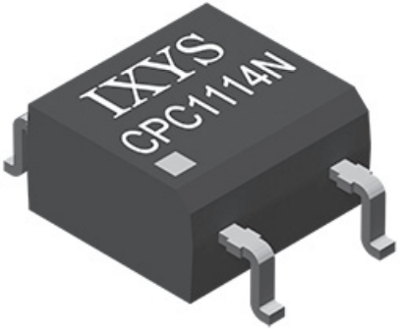

CPC1114NTR | Littelfuse
Solid state relay, 60 VDC, 400 mA, PCB mounting, CPC1114NTR
Order No.: 75P1887
EAN: 4099891887520
MPN:
CPC1114NTR
Unit Price (€ / pc.)
1.2138 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Relay, CPC1114NTR, LITTELFUSE
A single-pole, normally closed solid state relay in a 4-pin SOP package that employs optically coupled MOSFET technology to provide 1500 Vrms of input/output isolation. Its optically coupled outputs, which use the patented OptoMOS architecture, are controlled by a highly efficient infrared LED. IXYS integrated circuits' state of the art double-molded vertical construction packaging makes it one of the world’s smallest relays. It offers board space savings of at least 20% over the competitor’s larger 4-pin SOP relay.
Features
- High reliability
- No EMI/RFI generation
- Immune to radiated EM fields
- Flammability rating UL 94 V-0
Applications
- Passive infrared detectors, data signalling, sensor circuitry
- Instrumentation
- Multiplexers
- Data acquisition
- Electronic switching
- I/O subsystems
- Meters
- Medical equipment
- Industrial controls
Technical specifications
| LED display | Yes | |
| Assembly | PCB mounting | |
| Rated current | 400 mA | |
| Voltage V RRM (peak reverse voltage) | 5 V | |
| Voltage | 60 VDC |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
