RF3386-000 | Littelfuse
PTC fuse, resettable, radial, 6 V (DC), 40 A, 2 A (trip), 1.2 A (hold), RF3386-000
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

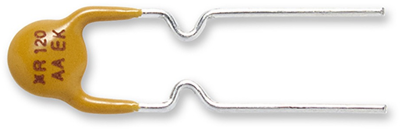

PTC fuse, RF3386-000, LITTELFUSE
Radial-leaded device used for fast time-to-trip and low-resistance computer applications. Compatible with high-volume electronics assembly, and is RoHS compliant, lead-free and halogen-free.
Applications
- Satellite video receivers
- Industrial controls
- Transformers
- Computer motherboards
- Modems
- USB hubs, ports and peripherals
- CD-ROMs
- Game machines
- IEEE 1394 ports
- Battery packs
- Phones
- Fax machines
- Analog and digital line cards
- Printers
Technical specifications
| Activation time | 500 ms | |
| Trigger current | 2 A | |
| Design | radial | |
| max. holding current | 1.2 A | |
| Rated voltage (DC) | 6 V | |
| Rated current | 40 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85332900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
