HE721A2400 | Littelfuse
Reed relay, 24 V (DC), 1 Form A (N/O), DIP, 10 W, HE721A2400
Unit Price (€ / pc.)
2.4395 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4395 €
10 pcs.
2.0349 €
100 pcs.
1.7374 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature reed relay series HE700, type Hamlin HE721
DiL package without suppressor diode.
Contact type: 1 x NO
Rated coil voltage: 24 VDC
Contact rating: max. 10 W (1 and 2 x NO)
Switching voltage: max. 200 VDC (1 and 2 x NO)
Switching current: max. 0.5 A (1 and 2 x NO)
On-state current: max. 1.2 A (1 and 2 x NO)
Reverse voltage contacts/coil: min. 500 VAC
Contact resistance: max. 150 mohm (1 and 2 x NO)
Response/release time: max. 1.0/1.0 ms (1 and 2 x NO)
Operating temperatures: - 40 to +85 °C
Coil resistance: 2150 ohm ±10%
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 2.15 kΩ | |
| Switching Voltage (DC) | 200 V | |
| Contact type | 1 Form A (N/O) | |
| Connection | PCB connection | |
| switching current | 500 mA | |

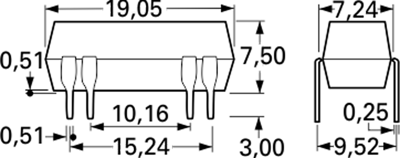

| Design | DIP | |
| Breaking capacity | 10 W | |
| Coil voltage (DC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bar with 25 pieces |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
