FLEX-14-10-15 | Littelfuse
Reed switch, FLEX-14-10-15AH
Order No.: 75P2357
EAN: 4099891892227
MPN:
FLEX-14-10-15
Unit Price (€ / pc.)
0.7973 € *
Available: 0 pcs.
Available in 4 Days: 1,058 pcs.
Leadtime: 1 Week **

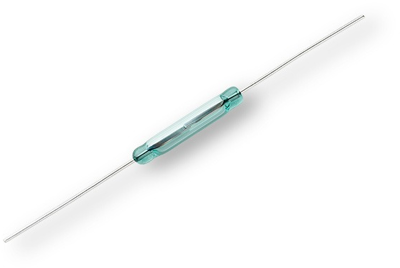

Reed switch, FLEX-14-10-15, LITTELFUSE

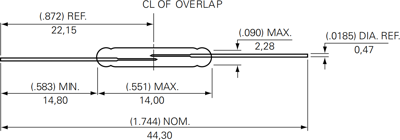

A sub-miniature, normally open reed switch with a 14 mm long x 2.28 mm diameter glass envelope, flexible, easily formed leads, capable of switching 200 VDC at 10 W. Hermetically sealed switch contacts are not effected by and have no effect on their external environment.
Features
- Longer leads are flexible for easy forming
- Soft leads enable reliable hand forming
- Zero operating power required for contact closure
- Low EMI and RFI generation
- Excellent for switching micro-controller logic level loads
Applications
- Reed relays
- Security
- Limit switching
- Office equipment
- Industrial control
Technical specifications
| Connection | axial | |
| Version | reed switche | |
| diameter | 2.28 mm | |
| Length | 44.3 mm | |
| Assembly | PCB mounting | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 10 W | |
| Switching Voltage (AC) | 140 V | |
| Switching Voltage (DC) | 200 V | |
| switching current | 0.5 A | |
| Contact resistance | 100 mΩ |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
