59145-010 | Littelfuse

Proximity switch, Surface mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, Detection range 9-13.5 mm, 59145-010

Order No.: 29G300
EAN: 4099889448085
MPN:
59145-010
Series: 59145
Littelfuse

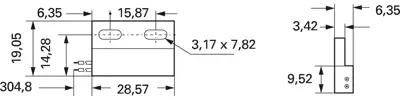

59145-010 Littelfuse Proximity Switches, Reed switches Image 1

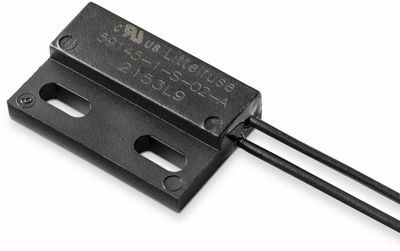

59145-010 Littelfuse Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
4.8314 € *
Available: 386 pcs.
Available in 4 Days: 262 pcs.
Leadtime: 1 Week **
Total Price:
4.83 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8314 €
10 pcs.
3.4510 €
100 pcs.
2.9393 €
*incl. VAT plus shipping costs
**Subject to prior sale

Flange mounting sensor, 59145-010, Littelfuse

The 59145-010 is a flange mounting reed sensor with a choice of normally open, normally open high voltage, normally closed or changeover contacts. The wires exit from the top right-hand side, see Drawing 2. It is well suited for use in a wide range of industrial, appliances, or IoT proximity sensing applications.

Features

  • Non-contact switching solution for wet & harsh environments
  • Housing design for optimum adjustability
  • Helps implement efficient proximity/access and energy management systems
  • Compact size and easy installation and effective concealment in many applications

Applications

  • Security and access control
  • Factory automation
  • Process equipment
  • Major appliances
  • Small appliances
  • Proximity and limit sensing
Technical specifications
Connection stranded wires
Version reed sensor
Detection range 9-13.5 mm
Length 28.57 mm
Assembly Surface mounting
Latching switching function 1 Form A (N/O)
Breaking capacity 10 W
Switching Voltage (DC) 200 V
switching current 0.5 A
Contact resistance 200 mΩ
Logistics
Country of origin CN
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
