Littelfuse

59045-1-S-00-0 | Littelfuse

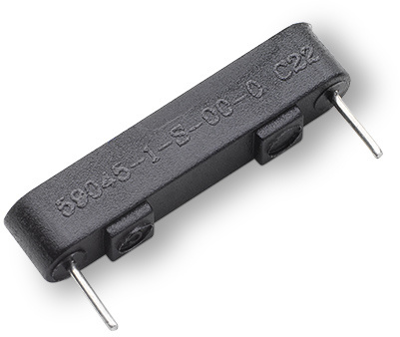

Proximity switch, PCB mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, Detection range 5 mm, 59045-1-S-00-0

Order No.:  29G2244
MPN:
59045-1-S-00-0
Series:  59045
EAN: 4099889447880
Littelfuse
default L
front L
default S
front S
Images may differ
Unit Price (€ / pc.)
1.4637 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Add to Cart
Total Price:
1.46 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
1.4637 €
Description

Proximity switches with reed contacts, type Hamlin 59045-.

Sensor; Contact type: NO. Contact rating: max. 10 W. Switching voltage: max. 200 VDC. Switching current: max. 0.5 A. Dielectric strength: min. 250 VDC. Contact resistance: max. 0.2 ohm. Response/release time: 1.0/1.0 ms. Operating temperatures: –40 to +105 °C. Certifications: UL.

Type: 59045-1-S-00-0, sensing range 5.0 mm

Technical specifications
Connection solder pin
Version reed switche
Detection range 5 mm
Length 17.78 mm
Assembly PCB mounting
Latching switching function 1 Form A (N/O)
Breaking capacity 10 W
Switching Voltage (DC) 200 V
switching current 0.5 A
Contact resistance 200 mΩ
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Accessory

Order No.:

 29G226

Manufacturer SKU:

 57045-000



Available: 0 pcs.
Leadtime: 14 Weeks **
2.20 € per pc. *
*incl. VAT plus shipping costs
**Subject to prior sale
1260 pcs.
2.2015 €
Variations
Search results: 1 item in 2 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Detection range
Breaking capacity
Latching switching function
Version
Length
Contact resistance
switching current
Assembly
Connection
Switching Voltage (DC)
Proximity switch, PCB mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, Detection range 4.5 mm, 59045-1-T-00-0
Order No.:
 29G2242
Manufacturer:
 Littelfuse
Manufacturer SKU:
 59045-1-T-00-0
Total Price: 4.34 € *
1 pcs.
4.3435 €
10 pcs.
3.8199 €
100 pcs.
3.3558 €
250 pcs.
3.2249 €
1000 pcs.
3.0226 €
Available: 49 pcs.
Leadtime: 16 Weeks **
4.5 mm
10 W
1 Form A (N/O)
reed switche
17.78 mm
200 mΩ
0.5 A
PCB mounting
solder pin
200 V
Proximity switch, PCB mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, Detection range 5 mm, 59045-1-S-00-0
Order No.:
 29G2244
Manufacturer:
 Littelfuse
Manufacturer SKU:
 59045-1-S-00-0
Total Price: 1.46 € *
1000 pcs.
1.4637 €
Available: 0 pcs.
Leadtime: 16 Weeks **
5 mm
10 W
1 Form A (N/O)
reed switche
17.78 mm
200 mΩ
0.5 A
PCB mounting
solder pin
200 V
