59025-030 | Littelfuse
Reed switche, black, built-in mounting, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, 59025-030
Unit Price (€ / pc.)
8.6037 € *
Available: 7 pcs.
Total Price:
8.60 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6037 €
10 pcs.
6.1523 €
100 pcs.
5.2479 €
500 pcs.
4.5815 €
1000 pcs.
4.1412 €
*incl. VAT plus shipping costs
Subject to prior sale

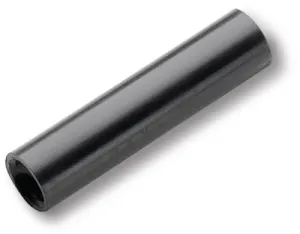

Reed sensor, 59025-030, Littelfuse
The 59025-030 is a small cylindrical reed sensor with a choice of normally open, normally closed or change-over contacts. It is capable of switching up to 265 Vac/300 Vdc at 10 VA. It is well suited for use in a wide range of industrial, appliances, or IoT proximity sensing applications. It functions best with the actuator.
Features
- Non-contact switching solution for wet and harsh environments
- No leakage current in ‘open’ state−ideal for batterypowered IoT applications
- Helps implement efficient proximity/access and energy management systems
- Compact size and easy installation and effective concealment in many applications
Applications
- Security and access control
- Factory automation
- Process equipment
- Major appliances
- Small appliances
- Proximity and limit sensing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Detecting distance | 4.5-7 mm | |
| Latching switching function | 1 Form C (NO/NC) | |
| Connection | stranded wires | |
| diameter | 6.22 mm | |
| Version | black | |
| switching current | 0.25 A | |
| Assembly | built-in mounting | |
| Breaking capacity | 5 W | |
| Length | 25.4 mm | |
| Switching Voltage (DC) | 175 V | |
| Degree of protection (IP) | IP67 | |
| Contact resistance | 200 mΩ | |
| Product type | reed sensor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
