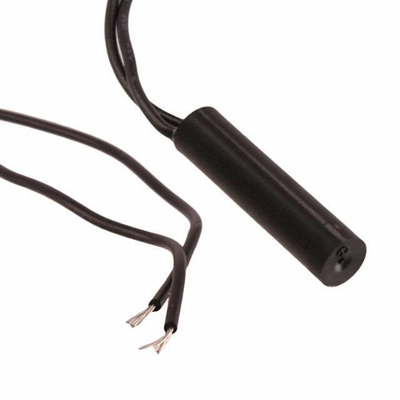

Proximity switch, built-In mounting, 1 Form A (NO), 10 W, 200 V (DC), 0.5 A, Detection range 4-8 mm, 59025-010
Active
Product by Littelfuse at Bürklin Elektronik
Proximity switches with reed contacts, type Hamlin 59025-.
Sensor; Contact type: NO or CO. Connection type: PVC cable, 300 mm. Certification: UL.
NO contact function with max. 200 VDC switching voltage.
Contact rating: max. 10 W. Switching voltage: max. 200 VDC. Switching current: max. 0.5 A. Dielectric strength: min. 250 VDC. Contact resistance: max. 0.2 ohm. Response/release time: max. 1.0/1.0 ms. Operating temperatures: –40 to +105 °C. Note: type 59025-010 with fixed switching distance between 4.0 and 8.0 mm, depending on the manufacturer.
Type: 59025-010, sensing range from 4.0 to 8.0 mm
| Connection | stranded wires | |
| Version | reed sensor | |
| diameter | 6.22 mm | |
| Detection range | 4-8 mm | |
| Length | 25.4 mm | |
| Assembly | built-In mounting | |
| Latching switching function | 1 Form A (NO) | |
| Breaking capacity | 10 W | |
| Switching Voltage (DC) | 200 V | |
| switching current | 0.5 A | |
| Contact resistance | 200000 Ω |
| Country of origin | CN |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
