39214000000 | Littelfuse
Micro fuse 8.5 x 8 mm, 4 A, T, 250 V (AC), 40 A breaking capacity, 39214000000
Unit Price (€ / pc.)
1.2138 € *
Available: 410 pcs.
Leadtime: 11 Weeks **
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
5 pcs.
1.2138 €
50 pcs.
1.0829 €
100 pcs.
0.9996 €
500 pcs.
0.8687 €
1400 pcs.
0.7973 €
*incl. VAT plus shipping costs
**Subject to prior sale

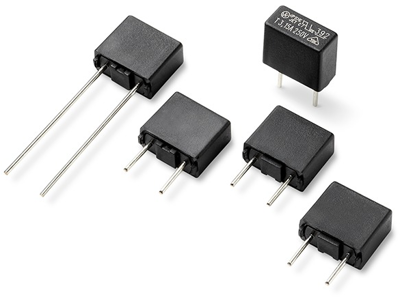

Micro fuse, 39214000000,LITTELFUSE
The 39214000000 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Reduced PCB space requirements
- Shock safe casing
- RoHS-compliant and Halogen-free
- Low internal resistance
Applications
- Battery chargers
- Power supplies
- Consumer electronics
- Industrial controllers
Technical specifications
Version | micro fuse | |
Tripping characteristics | T | |
Breaking capacity | 40 A | |
Design | 8.5 x 8 mm | |
Width | 4 mm | |
Height | 8 mm | |
Length | 8.5 mm | |
Rated voltage (AC) | 250 V | |
Rated current | 4 A |
Download
Logistics
Country of origin | PH |
Customs tariff number | 85361010 |
Original Packaging | Ammopack with 1,400 pieces |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
