37005000410 | Littelfuse
Micro fuse 8.5 x 8 mm, 500 mA, F, 250 V (AC), 35 A breaking capacity, 37005000410
Unit Price (€ / pc.)
0.6188 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

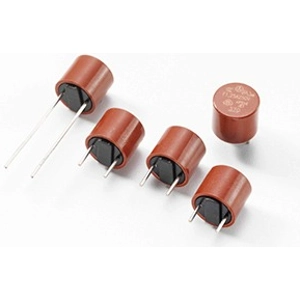

Micro fuse, 37005000410, Littelfuse
The 37005000410 is a fast-acting subminiature fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Reduced PCB space
- Direct solderable or plug-in
- Low internal resistance
- Shock safe casing
- Vibration resistant
Applications
- Battery chargers
- Industrial controllers
- Power supplies
- Consumer electronics
Technical specifications
| Version | micro fuse | |
| Tripping characteristics | F | |
| Breaking capacity | 35 A | |
| Design | 8.5 x 8 mm | |
| diameter | 8.5 mm | |
| Length | 8 mm | |
| Rated voltage (AC) | 250 V | |
| Rated current | 500 mA |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85361010 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
