37003150430 | Littelfuse

Micro fuse TR5, 315 mA, F, 250 V (AC), 35 A breaking capacity, 37003150430

Order No.: 46G5398
EAN: 4099889091731
MPN:
37003150430
Series: 370
37003150430 Littelfuse Micro Fuses

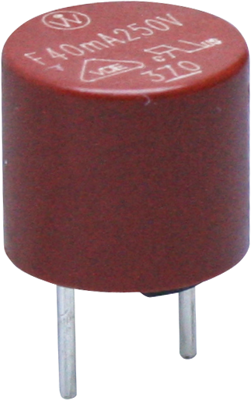

Image may differ
Unit Price (€ / pc.)
0.6426 € *
Available in 4 Days: 200 pcs. - if ordered today
Total Price:
128.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
200 pcs.
0.6426 €

Micro fuse, 37003150430,LITTELFUSE

The 37003150430 is a sub miniature fast-acting fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • Reduced PCB space requirements
  • Shock safe casing
  • RoHS-compliant and Halogen-free
  • Low internal resistance

Applications

  • Battery chargers
  • Power supplies
  • Consumer electronics
  • Industrial controllers
Technical specifications
Filter Property Value
Tripping characteristics F
Rated voltage (AC) 250 V
Length 8 mm
Design TR5
Breaking capacity 35 A
diameter 8.5 mm
Version micro fuse
Rated current 315 mA
Logistics
Property Value
Country of origin PH
Customs tariff number 85361010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
