30314000421 | Littelfuse
Micro fuse TR3, 4 A, F, 125 V (AC), 50 A breaking capacity, 30314000421
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
7.4851 € *
Available: 209 pcs.
Total Price:
7.49 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4851 €
10 pcs.
6.2237 €
100 pcs.
5.3312 €
500 pcs.
4.6291 €
1000 pcs.
4.2007 €
*incl. VAT plus shipping costs
Subject to prior sale
Micro fuse, 30314000421,LITTELFUSE
The 30314000421 is a fast-acting fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Reduced PCB space requirements
- Shock safe casing
- RoHS-compliant and Halogen-free
- Low internal resistance
Applications
- Battery chargers
- Power supplies
- Consumer electronics
- Industrial controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | micro fuse | |
| Design | TR3 | |
| Rated current | 4 A | |
| Tripping characteristics | F | |
| Rated voltage (AC) | 125 V | |
| Breaking capacity | 50 A | |

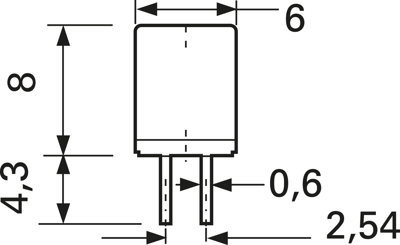

| Length | 8 mm | |
| diameter | 6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
