30301250421 | Littelfuse

Micro fuse TR3, 125 mA, F, 125 V (AC), 50 A breaking capacity, 30301250421

Order No.: 46G4708
EAN: 4099889091267
MPN:
30301250421
Series: 303
30301250421 Littelfuse Micro Fuses Image 1
30301250421 Littelfuse Micro Fuses Image 2
Image may differ
Unit Price (€ / pc.)
3.3796 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1,013.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
3.3796 €

Micro fuse, 30301250421,LITTELFUSE

The 30301250421 is a fast-acting fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • Reduced PCB space requirements
  • Shock safe casing
  • RoHS-compliant and Halogen-free
  • Low internal resistance

Applications

  • Battery chargers
  • Power supplies
  • Consumer electronics
  • Industrial controllers
Technical specifications
Filter Property Value
Tripping characteristics F
Rated voltage (AC) 125 V

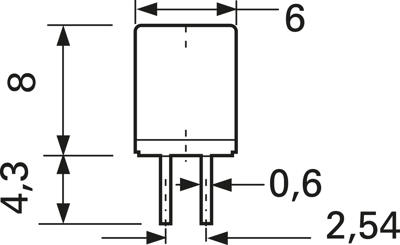

Length 8 mm
Design TR3
Breaking capacity 50 A
diameter 6 mm
Version micro fuse
Rated current 125 mA
Logistics
Property Value
Country of origin PH
Customs tariff number 85361010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
