0441004.WRA | Littelfuse

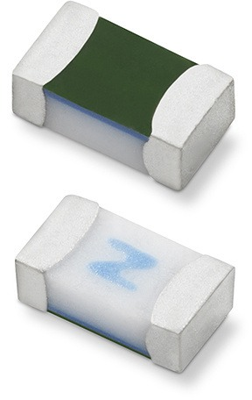

SMD fuse SMD 0603, 4 A, F, 32 V (DC), 50 A breaking capacity, 0441004.WRA
Unit Price (€ / pc.)
1.1543 € *
Standard delivery time from the manufacturer is: 9 Weeks
Fuse, 0441004.WRA, LITTELFUSE
The fuse is specifically tested to cater to the secondary circuit protection needs of compact auto electronics applications. The general design ensures excellent temperature stability and performance reliability. This high I²t fuse is designed to have ultra-high inrush current withstand capability to avoid nuisance fuse opening.
Features
- 100% lead-free, RoHS compliant and halogen-free
- Suitable for both leaded and lead-free reflow/wave soldering
- AEC-Q200 qualified
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 0.85 mm | |
| Breaking capacity | 50 A | |
| Enclosure | SMD | |
| Rated voltage (DC) | 32 V | |
| Version | SMD fuse | |
| Tripping characteristics | F | |
| Design | SMD 0603 | |
| Height | 0.5 mm | |
| Length | 1.54 mm | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
