0441003.WRA | Littelfuse

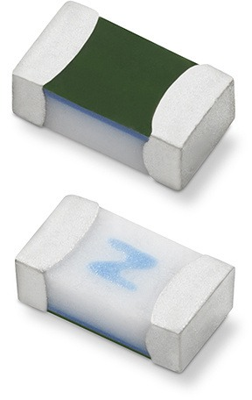

SMD-Fuse SMD 0603, 3 A, F, 32 V (DC), 50 A breaking capacity, 0441003.WRA

Order No.: 75P0472
EAN: 4099891873370
MPN:
0441003.WRA
Series: 441
Littelfuse
default L
Image may differ
Unit Price (€ / pc.)
1.1067 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
1.11 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
1.1067 €

Fuse, 0441003.WRA, LITTELFUSE

The fuse is specifically tested to cater to the secondary circuit protection needs of compact auto electronics applications. The general design ensures excellent temperature stability and performance reliability. This high I²t fuse is designed to have ultra-high inrush current withstand capability to avoid nuisance fuse opening.

Features

  • 100% lead-free, RoHS compliant and halogen-free
  • Suitable for both leaded and lead-free reflow/wave soldering
  • AEC-Q200 qualified
Technical specifications
Version SMD-Fuse
Tripping characteristics F
Breaking capacity 50 A
Design SMD 0603
Width 0.85 mm
Enclosure SMD
Height 0.5 mm
Length 1.54 mm
Rated voltage (DC) 32 V
Rated current 3 A
Logistics
Country of origin PH
Customs tariff number 85361010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item in 7 variations
