0324025.MXP | Littelfuse
Microfuse 6.3 x 32 mm, 25 A, F, 125 V (DC), 250 V (AC), 100 A breaking capacity, 0324025.MXP
Unit Price (€ / pc.)
0.7021 € *
Available: 0 pcs.
Available in 4 Days: 20,000 pcs.
Leadtime: 15 Weeks **

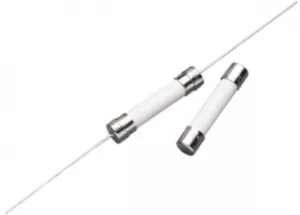

Fuse, 0324025.MXP, Littelfuse
The 3AB fast-acting fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
Features
- In accordance with UL Standard 248-14
- Available in cartridge and axial lead format and with various forming dimensions
- RoHS compliant and Lead-free
Technical specifications
| Rated voltage (AC) | 250 V | |
| Breaking capacity | 100 A | |
| Rated current | 25 A | |
| Length | 32.72 mm | |
| diameter | 6.98 mm | |
| Tripping characteristics | F | |
| Rated voltage (DC) | 125 V | |
| Design | 6.3 x 32 mm | |
| Version | microfuse | |
| Enclosure | ceramic tube |
Download
Logistics
| Customs tariff number | 85361010 |
| Country of origin | CN |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
