015403.5DRT | Littelfuse
SMD-Fuse 9.73 x 5.03 mm, 3.5 A, T, 125 V (DC), 125 V (AC), 50 A breaking capacity, 015403.5DRT
Unit Price (€ / pc.)
2.2729 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
2.27 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2729 €
25 pcs.
1.9397 €
100 pcs.
1.7850 €
250 pcs.
1.6898 €
*incl. VAT plus shipping costs
**Subject to prior sale

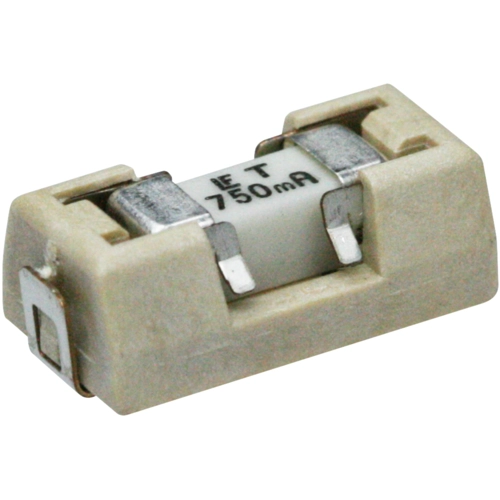

SMD-Fuse, 015403.5DRT,LITTELFUSE
The 015403.5DRT is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Easy fuse replacement
- Miniature size
- Wide operating temperature range
- High breaking capacity
Technical specifications
| Version | SMD-Fuse | |
| Tripping characteristics | T | |
| Breaking capacity | 50 A | |
| Design | 9.73 x 5.03 mm | |
| Width | 5.03 mm | |
| Enclosure | SMD | |
| Height | 3.81 mm | |
| Length | 9.73 mm | |
| Rated voltage (AC) | 125 V | |
| Rated voltage (DC) | 125 V | |
| Rated current | 3.5 A |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85361010 |
| Original Packaging | Reel with 1,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
