MIXA10WB1200TED | Littelfuse

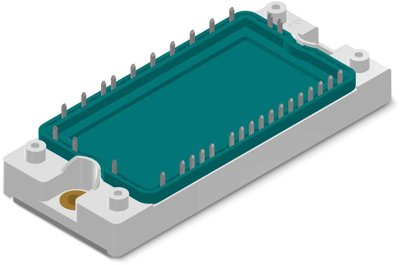

Converter brake inverter, 1600 V, 17 A, E2-Pack, Littelfuse MIXA10WB1200TED

Order No.: 74P0955
EAN: 4099891778200
MPN:
MIXA10WB1200TED
MIXA10WB1200TED Littelfuse IGBTs
Image may differ
Unit Price (€ / pc.)
63.3318 € *
Standard delivery time from the manufacturer is: 28 Weeks
Total Price:
379.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
6 pcs.
63.3318 €

IGBT module, MIXA10WB1200TED, LITTELFUSE

XPT IGBT has an easy paralleling due to the positive temperature coefficient of the on-state voltage. It has a rugged XPT design (Xtreme light Punch Through) that results in a short circuit rating of 10 µsec, very low gate charge, and low EMI.

Features

  • Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)
  • Fast and soft reverse recovery
  • Low operating forward voltage
  • Insulated copper base plate
  • Soldering pins for PCB mounting
  • Temperature sense included

Applications

  • AC motor drives
  • Solar inverter
  • Medical equipment
  • Uninterruptible power supplies (UPS)
  • Air-conditioning systems
  • Welding equipment
  • Switch-mode and resonant-mode power supplies
Technical specifications
max. Voltage 1600 V
Saturation voltage 1.8 V
Assembly chassis mounting
Enclosure E2-Pack
Switching loss b. switch off Eoff typ. 1.1 J
Max. current 17 A
Version 3 phase inverter
Switching loss at switch-on Eon typ. 1.1 J
min. operating temperature -40 °C
max. operating temperature 125 °C
Power dissipation 60 W
Logistics
Country of origin PH
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
