IXYR100N120C3 | Littelfuse

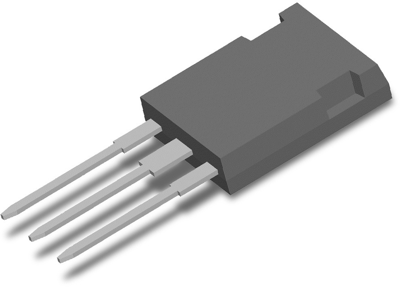

IGBT, IXYR100N120C3AH
Order No.: 74P0940
EAN: 4099891778057
MPN:
IXYR100N120C3
Unit Price (€ / pc.)
24.633 € *
Available: 0 pcs.
Leadtime: 57 Weeks **
IGBT, IXYR100N120C3, Littelfuse
High-speed IGBT for 20-50 kHz switching, optimized for low switching losses with high power density and low gate drive requirements.
Features
- Square RBSOA
- Silicon chip on direct-copper bond (DCB) substrate
- Isolated mounting surface
- Avalanche rated
- Positive thermal coefficient of vce(sat)
- International standard package
- High current handling capability
Applications
- High frequency power inverters
- Power inverters
- UPS
- Motor drives
- SMPS
- Battery chargers
- Welding machines
- Lamp ballasts
Technical specifications
| Version | single | |
| Enclosure | TO-247I | |
| max. Voltage | 1200 V | |
| Max. current | 110 A | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Saturation voltage | 2.5 V | |
| Switching loss b. switch off Eoff typ. | 6.15 J | |
| Switching loss at switch-on Eon typ. | 15 J | |
| Power dissipation | 484 W |
