IXYN100N120C3H1 | Littelfuse

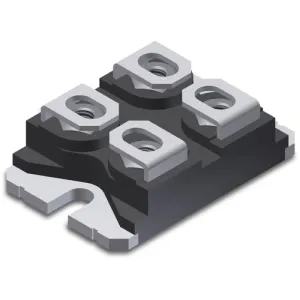

IGBT, 1200 V, 140 A, SOT-227U, Littelfuse IXYN100N120C3H1
Order No.: 74P0913
EAN: 4099891777784
MPN:
IXYN100N120C3H1
Unit Price (€ / pc.)
36.652 € *
Available: 0 pcs.
Leadtime: 61 Weeks **
IGBT, IXYN100N120C3H1, Littelfuse
High-speed IGBT for 20-50 kHz switching, optimized for low switching losses with high power density and low gate drive requirements.
Features
- Square RBSOA
- Positive thermal coefficient of Vce(sat)
- Avalanche rated
- High current handling capability
- International standard package
Applications
- High frequency power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Battery chargers
- Welding machines
- Lamp ballasts
Technical specifications
| max. Voltage | 1200 V | |
| Saturation voltage | 3.5 V | |
| Assembly | chassis mounting | |
| Enclosure | SOT-227U | |
| Switching loss b. switch off Eoff typ. | 3.15 J | |
| Max. current | 140 A | |
| Version | single | |
| Switching loss at switch-on Eon typ. | 15 J | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C | |
| Power dissipation | 690 W |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
