17861640001 | Littelfuse

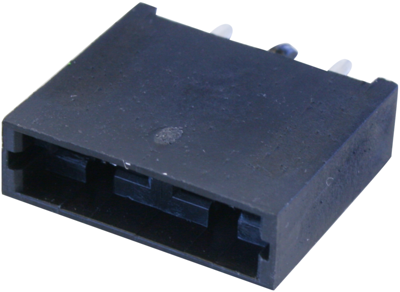

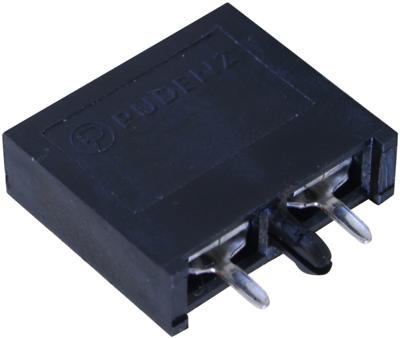

Fuse holder, 5.1 x 19.1 mm, 80 V, PCB mounting, 17861640001
Unit Price (€ / pc.)
6.6878 € *
Next delivery: 300 pcs. on 2026-06-10
Total Price:
6.69 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6878 €
10 pcs.
4.7957 €
100 pcs.
4.0817 €
500 pcs.
3.5581 €
1000 pcs.
3.2368 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holders for FKS blade fuses, type Littelfuse/Pudenz 178.616.
With lock pin and PCB connections; Case material: thermoplastic, UL 94 VDC0, black. Contacts: tinned copper alloy. Rated voltage: max. 80 V. Contact temperature: max. 130 °C.
Technical attributes (type, number of solder contacts): 178.6164.000, 2 solder contacts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| For Fuse | 5.1 x 19.1 mm | |
| Version | closed | |
| Connection | solder pin | |
| Type of mounting | PCB mounting | |
| Rated voltage | 80 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
