178.6152.0001 | Littelfuse
Car fuse holder, FKS/ATO, 30 A, 80 V, PCB mounting, 178.6152.0001
Unit Price (€ / pc.)
4.6291 € *
Available: 1,624 pcs.
Available in 4 Days: 800 pcs. - if ordered today
Total Price:
4.63 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6291 €
10 pcs.
3.3082 €
25 pcs.
2.8322 €
50 pcs.
2.4633 €
100 pcs.
2.2372 €
*incl. VAT plus shipping costs
Subject to prior sale

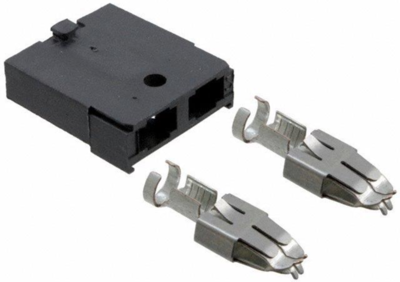

Fuse holders for FKS blade fuses series FKH, type Littelfuse/Pudenz 178.61.
With tab terminals; Connection material: tinned copper alloy. Housing and adapter: thermoplastic. Rated current: max. 30 A. Rated voltage: max. 80 V. Fuse holder retainers are available on separate order. Two parts are required for the retainer: snap-on lock on the right, and without lock on the left (please order each item separately).
Type: 178.6152.000, fuse holder
Technical specifications
| Filter | Property | Value |
|---|---|---|
| For Fuse | FKS/ATO | |
| Version | closed | |
| Connection | crimp connection | |
| Type of mounting | PCB mounting | |
| Rated current | 30 A | |
| Rated voltage | 80 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
