VUO36-18NO8 | Littelfuse

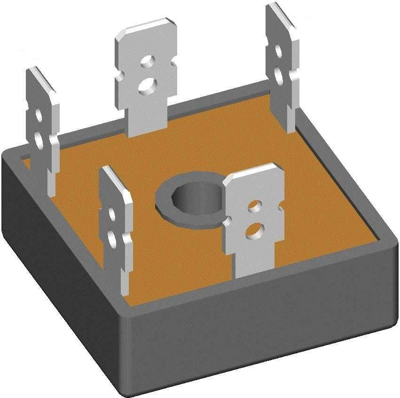

Bridge rectifier, VUO36-18NO8AH
Order No.: 74P1181
EAN: 4099891780463
MPN:
VUO36-18NO8
Unit Price (€ / pc.)
13.1971 € *
Available: 0 pcs.
Leadtime: 42 Weeks **
Rectifier bridge, VUO36-18NO8, LITTELFUSE
A rectifier bridge with an isolation voltage of 3000 V, very low forward voltage drop and leakage current, and improved thermal behaviour.
Features
- Planar passivated chip
- Industry standard outline
- RoHS compliant
- Easy to mount with one screw
Applications
- Diode for main rectification
- For three phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Technical specifications
| Version | 3-phase | |
| Enclosure | FO-B | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Assembly | screw mounting | |
| Voltage V RRM (peak reverse voltage) | 1800 V |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
