LTL-4253 | LITE-ON
LED, THT, Ø 5 mm, yellow, 588 nm, 5.6 to 19 mcd, 36°, LTL-4253
Unit Price (€ / pc.)
0.1464 € *
Available: 810 pcs.
Total Price:
1.46 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1464 €
50 pcs.
0.1059 €
250 pcs.
0.0881 €
1000 pcs.
0.0750 €
2500 pcs.
0.0666 €
*incl. VAT plus shipping costs
Subject to prior sale

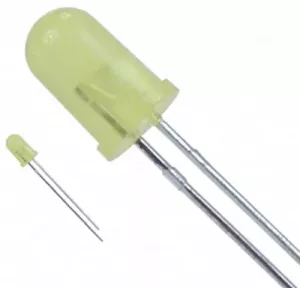

Through hole lamp, LTL-4253, LITE-ON
Features
- High intensity
- Popular T-1 3/4 diameter Package
- Selected minimum intesities
- General purpose leads
- Reliable and rugged
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| max. operating temperature | 100 °C | |
| Assembly | THT | |
| On-State Voltage | 2.6 V | |
| Number of LEDs | 1 | |
| Light intensity min. | 0.0056 cd | |
| Colour of the LED | yellow | |
| Radiation angle | 36 ° | |
| diameter | 5 mm | |
| Forward Current | 20 mA | |
| Wavelength | 588 nm | |
| Width | 5 mm | |
| Light intensity typ. | 0.019 cd | |
| Length | 8.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85414100 |
| Country of origin | CN |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
