LTL-4231N | LITE-ON
LED, THT, Ø 3 mm, green, 569 nm, 5.6 to 12.6 mcd, 60°, LTL-4231N
Unit Price (€ / pc.)
0.1178 € *
Available: 8,360 pcs.
Leadtime: 13 Weeks **
Total Price:
1.18 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1178 €
100 pcs.
0.0964 €
300 pcs.
0.0678 €
1000 pcs.
0.0559 €
3000 pcs.
0.0488 €
10000 pcs.
0.0428 €
*incl. VAT plus shipping costs
**Subject to prior sale

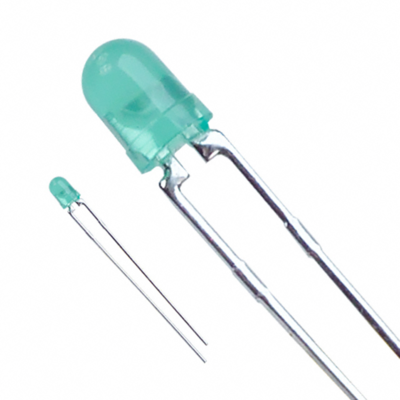

Through hole lamp, LTL-4231N, LITE-ON
Features
- High intensity
- Standard T-1 diameter package
- Selected minimum intesities
- Wide viewing angle
- General purpose leads
- Reliable and rugged
Technical specifications
| On-State Voltage | 2.6 V | |
| Assembly | THT | |
| diameter | 3 mm | |
| Width | 3 mm | |
| Forward Current | 20 mA | |
| Length | 4.45 mm | |
| Wavelength | 569 nm | |
| Number of LEDs | 1 | |
| min. operating temperature | -55 °C | |
| Colour of the LED | green | |
| max. operating temperature | 100 °C | |
| Radiation angle | 60 ° | |
| Light intensity min. | 0.0056 cd | |
| Light intensity typ. | 0.0126 cd |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
