LTC201ACS#PBF | Linear Technology

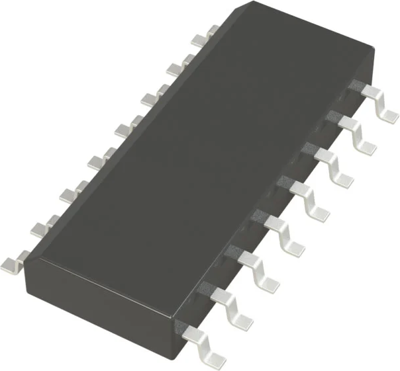

Micropower Quad CMOS Analog Switch, LTC201ACS#PBF, Linear Technology

The LTC201ACS#PBF is a micropower, quad CMOS analog switch that typically dissipates only 250µW from ±15V supplies and 40µW from a single 5V supply. The switch has a typical on-resistance of 65Ω and a very high off-resistance. A break-before-make characteristic, inherent in this switch, prevents the shorting of two channels. With a supply voltage of ±15V, the signal range is ±15V. The LTC201ACS#PBF is designed for applications such as programmable gain amplifiers, analog multiplexers, sample-and-hold circuits, precision charge switching, and remote switching.

Features

• Micropower Operation
• Low Charge Injection
• Low RON
• Low Leakage
• Guaranteed Break Before Make
• Latch Resistant Design
