RX 8248 | LINDSTRÖM
ESD Oblique end cutter, 143 mm, 72 g, RX 8248
Active
Product by LINDSTRÖM at Bürklin Elektronik
Oblique cutters, type Lindstrom Rx 8248.

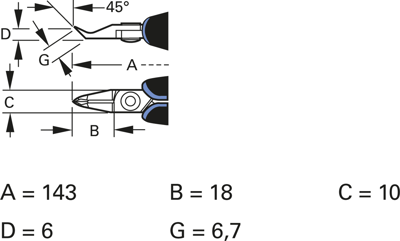

Milled long nose, 45° angle. The handle casing is protected against electrostatic charge, not conductive in the conductivity range and conductive in the dissipative range, however, non-insulated. Not suitable for life voltage electrical equipment. Practical operation of the tool is ensured with a resistance-reducing and adjustable spring opener; Cutting edge shape: with small facet. Cutting capacity: copper wire 0.2 to 0.8 mm. Dimensions: A 143, B 18, C 10, D 6.0, G 6.7 mm.
Technical attributes (type, cutting edge shape, cutting capacity for copper wire): RX 8248, oblique cutter
| Version | Oblique end cutter | |
| ESD protection | Yes | |
| Weight | 0.072 kg | |
| Length | 143 mm | |
| Material | steel | |
| 1000V Insulated | No |
| Country of origin | ES |
| Customs tariff number | 82032000 |
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
