RX 8247 | LINDSTRÖM
ESD oblique cutter, 143 mm, 72 g, cut capacity (1 mm/–/–/–), RX 8247
As a private customer, you can buy this item as soon as we have it back in stock.
Oblique cutters, type Lindstrom Rx 8247.

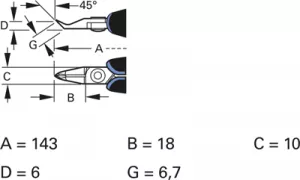

Long nose, 45° angle. The handle casing is protected against electrostatic charge, not conductive in the conductivity range and conductive in the dissipative range, however, non-insulated. Not suitable for life voltage electrical equipment. Practical operation of the tool is ensured with a resistance-reducing and adjustable spring opener; Cutting edge shape: without facet. Cutting capacity: copper wire 0.2 to 1.0 mm. Dimensions: A 143, B 18, C 10, D 6.0, G 6.7 mm.
Technical attributes (type, cutting edge shape, cutting capacity for copper wire): Rx 8247, oblique cutter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ESD protection | Yes | |
| Cutting edge | with facet | |
| Cutting capacity (soft) | 1 mm | |
| Material | steel | |
| Weight | 72 g | |
| Version | oblique end cutter | |
| 1000V Insulated | No | |
| Length | 143 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
