35047.000.000 | LEAR Corporation
Insulated flat plug sleeve, 6.3 x 0.8 mm, 4.0 to 6.0 mm², AWG 12 to 10, brass, tin-plated, yellow, 35047.000.000
Order No.: 05F540
EAN: 4099889618563
MPN:
35047.000.000
Unit Price (€ / pc.)
0.5236 € *
Available: 219 pcs.
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5236 €
100 pcs.
0.4760 €
500 pcs.
0.4165 €
1000 pcs.
0.3451 €
5000 pcs.
0.2975 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle, 35047.000.000, LEAR Corporation
Receptacle, insulated, made of tinned brass; Insulation: PVC.
Mating width 6.3 mm, type 350.

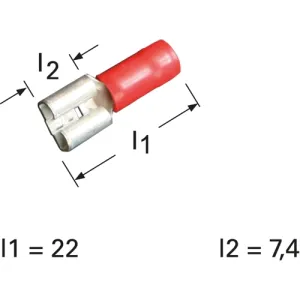

To DIN 46245 Part 3; Dimensions: l1 22, l2 7.4 mm.
Technical attributes (type, mating width x mating thickness, for conductor cross-section. color): 35047, 6.3 x 0.8 mm, 4.0 to 6.0 mm², yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 6.3 x 0.8 mm | |
| Material | brass, tin-plated | |
| Isolated | Yes | |
| Insulation colour | yellow | |
| Connection | crimp connection | |
| Cable cross-section | 4.0 to 6.0 mm² | |
| AWG cross-section | AWG 12 to 10 | |
| Nominal size according to DIN | DIN 46245 | |
| Length | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
