61746503 | LAPP

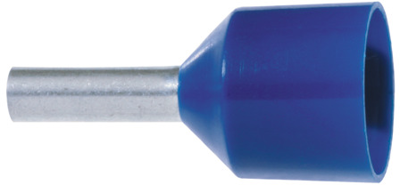

Insulated wire end ferrule, 2.5 mm², 21.5 mm/12 mm long, blue, 61746503
Order No.: 33P4209
EAN: 4044773378726
MPN:
61746503
ADERENDHÜLSEN AHK 2,5/12 BU
Unit Price (€ / pc.)
0.2083 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2083 €
10 pcs.
0.1797 €
50 pcs.
0.1583 €
100 pcs.
0.1380 €
500 pcs.
0.1273 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductor end sleeve, 61746503, LAPP
The 61746503 is an insulated conductor end sleeves for short circuit cables up to 3 kV, for cables with thick insulation and greater wall thickness for higher loads.
Features
- Halogen-free
Applications
- Special conductor end sleeve model with large plastic collar for thick insulation cables
- Suitable for unprotected connections on control and distribution panels, rail vehicles, solar systems, ignition cables

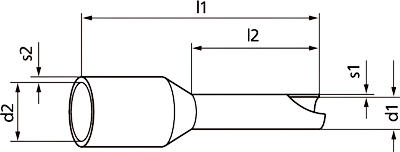

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C | |
| Length | 21.5 mm | |
| Colour | blue | |
| Isolated | Yes | |
| Contact material | copper | |
| Pin lenght | 12 mm | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
