61746502 | LAPP

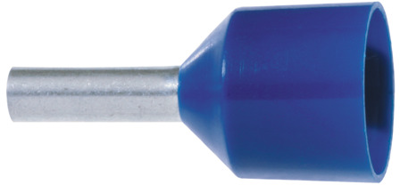

Insulated wire end ferrule, 2.5 mm², 17.5 mm/8 mm long, blue, 61746502
Order No.: 33P4210
EAN: 4044773378740
MPN:
61746502
ADERENDHÜLSEN AHK 2,5/8 BU
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1785 € *
Available: 100 pcs.
Available in 7 Days: 1,600 pcs. - if ordered today
Total Price:
0.18 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1785 €
10 pcs.
0.1559 €
50 pcs.
0.1380 €
100 pcs.
0.1202 €
500 pcs.
0.1131 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductor end sleeve, 61746502, LAPP
The 61746502 is an insulated conductor end sleeves for short circuit cables up to 3 kV, for cables with thick insulation and greater wall thickness for higher loads.
Features
- Halogen-free
Applications
- Special conductor end sleeve model with large plastic collar for thick insulation cables
- Suitable for unprotected connections on control and distribution panels, rail vehicles, solar systems, ignition cables

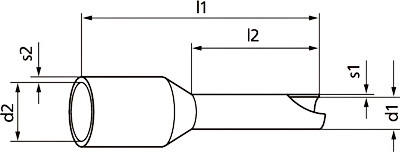

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 2.5 mm² | |
| Isolated | Yes | |
| Colour | blue | |
| Length | 17.5 mm | |
| Pin lenght | 8 mm | |
| Contact material | copper | |
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
