44420094 | LAPP
Plug, crimp connection, screw locking, straight, 44420094
Order No.: 30P1177
EAN: 4044773802016
MPN:
44420094
EPIC POWER LS1 F6 5+PE 14-1720
Series: EPIC POWER LS1
Unit Price (€ / pc.)
13.3518 € *
Standard delivery time from the manufacturer is: On Request

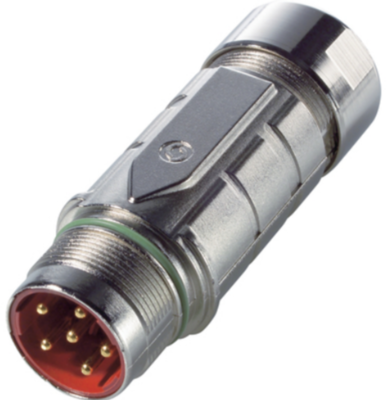

Circular connector, 44420094, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Corrosion-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Optimum strain relief
- Space requirement
Applications
- Plant engineering
- Servo drives and Servo assemblies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable diameter | 14 to 17 mm | |
| Type of locking | screw locking | |
| Version | plug | |
| Assembly | cable assembly | |
| Cable cross-section | 0.5-2.5 mm² | |
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Shell Material | zinc die casting | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
