44420093 | LAPP

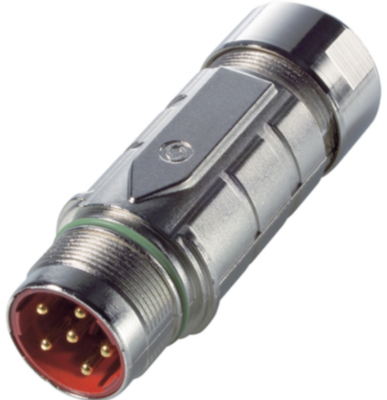

Plug, 8 pole, crimp connection, screw locking, straight, 44420093
Order No.: 30P1173
EAN: 4044773808780
MPN:
44420093
EPIC POWER LS1 F6 3+PE+4 K 14-
Series: EPIC POWER LS1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
33.9745 € *
Available in 7 Days: 10 pcs. - if ordered today
Total Price:
33.97 € *
Price list
Quantity
Price per unit*
1 pcs.
33.9745 €
10 pcs.
31.0471 €
50 pcs.
29.1074 €
100 pcs.
27.1558 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, 44420093, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Corrosion-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Optimum strain relief
- Space requirement
Applications
- Plant engineering
- Servo drives and Servo assemblies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.5-2.5 mm² | |
| Pin number | 8 pole | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| Type of locking | screw locking | |
| Cable diameter | 14 to 17 mm | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Electrical equipment take-back |  |
