24420058 | LAPP
Surface-mounting plug, 8 pole, crimp connection, screw locking, angled, 24420058
Order No.: 30P1126
EAN: 4044774924458
MPN:
24420058
EPIC POWER LS1 A3 5+PE K (5)
Series: EPIC POWER LS1
Unit Price (€ / pc.)
24.8591 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.86 € *
Price list
Quantity
Price per unit*
1 pcs.
24.8591 €
10 pcs.
22.7290 €
50 pcs.
21.3129 €
100 pcs.
19.8849 €
*incl. VAT plus shipping costs
Subject to prior sale

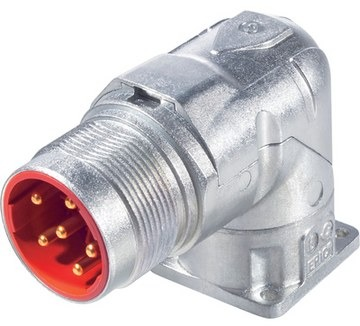

Circular connector, 24420058, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Corrosion-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Space requirement
- Robust
- Waterproof
Applications
- Plant engineering
- Servo drives and Servo assemblies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.5-2.5 mm² | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Shell Material | zinc die casting | |
| Version | surface-mounting plug | |
| Orientation | angled | |
| Assembly | front mounting | |
| Pin number | 8 pole | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
