24420056 | LAPP

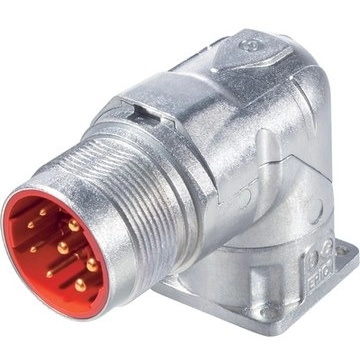

Surface-mounting plug, crimp connection, screw locking, angled, 24420056
Order No.: 30P1124
EAN: 4044774924434
MPN:
24420056
EPIC POWER LS1 A3 3+PE+4 K (5)
Series: EPIC POWER LS1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
31.7016 € *
Available: 4 pcs.
Available in 7 Days: 40 pcs. - if ordered today
Total Price:
31.70 € *
Price list
Quantity
Price per unit*
1 pcs.
31.7016 €
10 pcs.
28.9884 €
50 pcs.
27.1677 €
100 pcs.
25.3589 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, 24420056, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Corrosion-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Space requirement
- Robust
- Waterproof
Applications
- Plant engineering
- Servo drives and Servo assemblies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | surface-mounting plug | |
| Cable cross-section | 0.5-2.5 mm² | |
| Orientation | angled | |
| Contact connection | crimp connection | |
| Type of locking | screw locking | |
| Assembly | front mounting | |
| contact surface | gold-plated | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
